This project intend showing in a didactic and smart way the building sustainability index in real time in order to raise awareness among users of the importance of sustainable actions and reinforce the need for planning and actions aimed at reducing waste and optimizing resources.

The idea is to develop a controller that receives related sustainability data through EposMOTE network sensors, or also web services as date and time. With this data our cyber physical system will calculate the building sustainability index and monitor the tree color RGB, which ones will be chosen to give feedback.


According to the criteria raised , it means to be sustainable is not only economical, but also be comfortable, so that this color symbolizes the junction between economy and comfort, resulting in our sustainability ideal proposal.

3. Motivation

UFSC (Federal University of Santa Catarina) has an intelligent building (Sapiens Park), which has a development in IoT (Internet Of Things).

http://iot.ufsc.br/tiki-index.php

In this project, we work with the development of technological solutions to achieve certain demands of the building. Dentres its parameters intelligence, there is energy consumption efficiently. From this arose the interest in developing a technological solution to work with this energy efficiency.

In general, HVAC (Heating Ventiling Air Conditioner) are responsible for almost half of the energy consumption in buildings and running. Based on this, it sought to address this consumer with an alternative based on physical cyber systems.

4. Model:

At this point, it elaborated the solution model to follow:

{img type=



5. Algorithm overview:

The interface should inform the level of sustainability (low, medium or high) considering economy along with comfort, which is the analytical basis for the logic of the Fuzzy expert system. For this we used the following variables:

Because of the need for proximity to the logical database Fuzzy should be implemented in R as it is available and supported technology.

Fuzzy logic for handling a large volume of data, should be as close as possible to the information;

Variables:

  • Internal Temperature;

  • External Temperature;

  • Humidity;

  • Air conditionair consumption.



For now we define that data as a basis, but from the evolution of the project will include new parameters in order to increase the accuracy of calculation.

It was used fuzzy logic to implement this project in the process of making decisions about how much sustaintable the smart building is. The Logic process used to describe the algorithm was based on that table below:

Sustentabilidade Level level
  Low
  Med
  High



Parâmetro 1 Parâmetro 2 Parâmetro 3 Níveis de consumo
Temp Ideal Temp Externa Temp Interna low med high
low low low   -1E -2E
low low med - 1C - 1C - 1E - 1C
low low high - 1C - 1C - 1E -2C -2E
low med low     -1E
low med med   -(1/2)C-(1/2)E -1C-2E
low med high - 2C -2C -1E -2C -2E
low high low     -1E
low high med   -(1/2)C-(1/2)E -1C-2E
low high high -2C -2C-1E -2C-2E
med low low -1C -1C-1E -1C-2E
med low med   -1T-1E -2E-1T
med low high -1C -1C -1E -1T -1C -2E -2T
med med low -1C -1C -1E -1C -2E
med med med     -1E
med med high -1C -1C-1E -1C-2E
med high low -1C-1T -1C-1T-1E -1C-1T-2E
med high med     -2E
med high high -1C -1C-1E -1C-2E
high low low -2C -2C-1E -2C-2E
high low med -1C -1C-1E -1C-2E
high low high     -2E
high med low -2C -2C-1E -2C-2E
high med med -1C -1C-1E -1C-2E
high med high     -2E
high high low -2C -2C-1E -2C-2E
high high med -1C -1C-1E -1C-2E
high high high     -2E

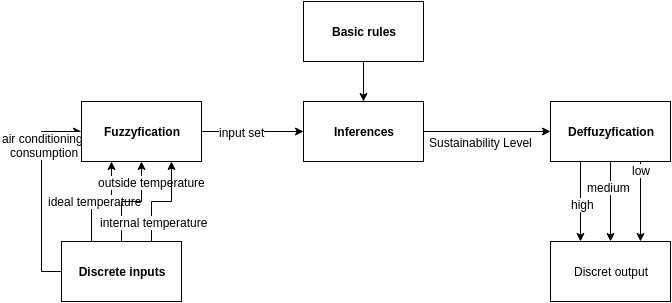

The fuzzy logic algorithm implemented in the system is based on the following model:




8. Non functional specifications:

The non functional specifications are based on the following list:

8.1 Internet

It must be connected o the Internet, because communication between the R server, Rails and Stree will be through this medium;

The size of the communication packet between the server and the EPOSmote should be small, i.e. below 200 kb, not to compromise the local band and operating in network instability times.

8.2 Sensors

The sensors can not be directly exposed to forced measurement situations; as an instrument that causes fire on the temperature sensor or the humidification output of the air conditioner of the moisture sensor or a light reflector for a lighting or temperature, or an emitter of gas over a cabônico gas sensor;
The range of minimum and maximum performance of the sensors must be respected, along with the specification of correct operation of these sensors to be no erroneous measurements.

8.3 Power Consumption

The tree LEDs can not consume a lot of energy, because it would go against the purpose of the project is sustainability. Logo should be used an efficient solution to interface to achieve the design requirements along with a more economic approach to the model; The same analysis should be drawn up for energizing the eposMOTE, with the same justification.

8.4 Tree View

The lighting of the tree should not hinder in any specific activity of the building;
It also can not fail to be significant consideravalmente to comply with the requirements, then there is a consideration of the optimum brightness.

8.5 Synchronization

Processing, communication and storage of information can not pass the pre-stipulated time interface update, which is 1 minute;
The interface of both the stree Machine as stree App must be synchronized.

8.6 App

O app pode ser baixado gratuitamente pois objetiva lucros indiretos (através da economia obtida) e a conscientização sobre o prédio em uso e não lucros diretos;

8.7 Site sTree

The site must be responsive.

The site should be available at least 17h daily.

The website must be hosted for free.

The project site shows both the old data as the real time (updated every 1 minute) in the history.



9. Computational model:

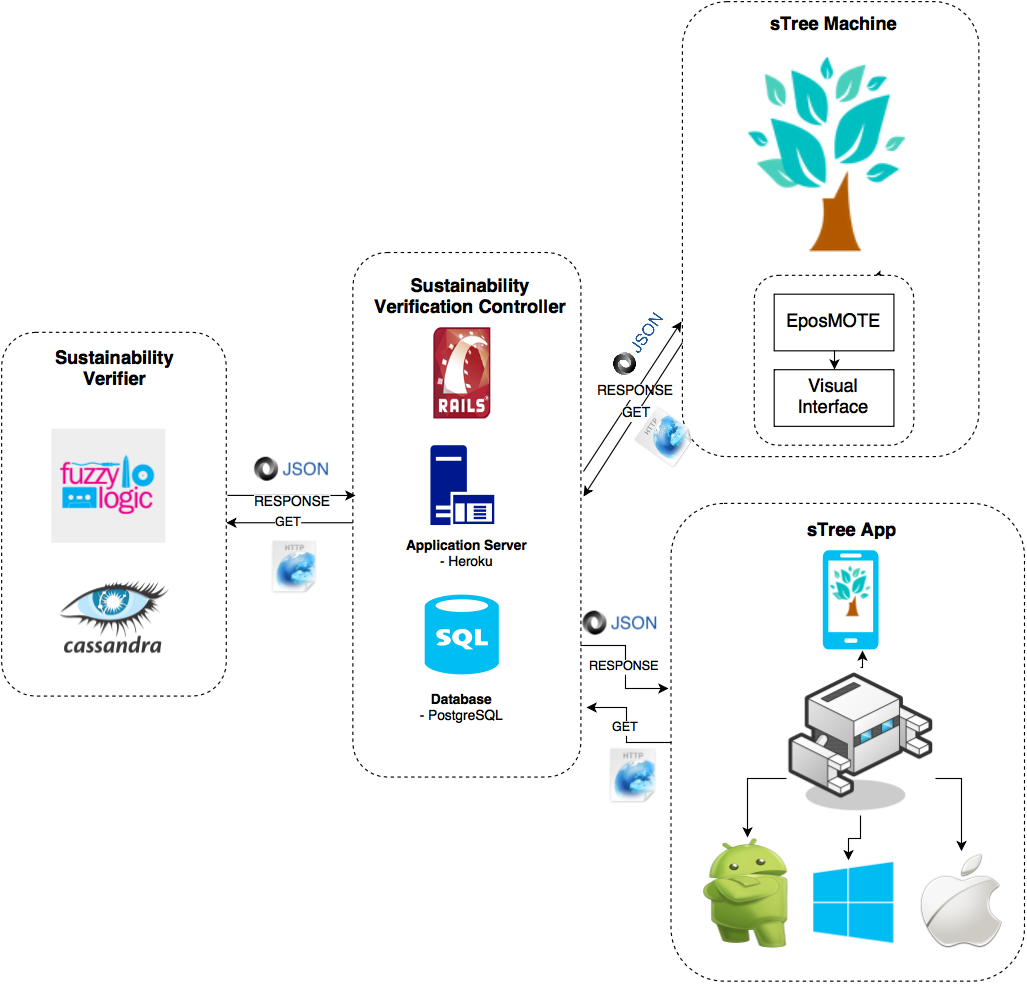

The computational model of the project is expressed by the following diagram:

{img type=

10. Technologies:

This project is divided in two technologies representing the cyber interface, the sTree App and the sTree Machine. These ones have the same response on the same time, the only difference is that one is represented in a physical interface and the other one is represented in a graphical interface.

This kind of representation is necessary because as the objective of this project is to raise awareness among users of the importance of sustainable actions, it is necessary to expose the results in a striking way. It is not everyone that will be checking if they are sustainable or not via mobile app or via web, so this kind of thing brings the necessity of having an interface that explores this hole. The graphical interface is also important to checking these levels in everywhere at every time. It is important of having this app to collect and analyse the data in the graphics during long periods of collected datas. From this, it is possible to conclude some hipotesis from the routine in the aspects of sustainability and comfort.





10.1. sTree Machine:

The stree-machine design should remember an Araucaria because this species is a Brazilian tree south of the country that is endangered, then it appears as an option to raise awareness about this issue;

The stree-machine must be made with recyclable materials to re-emphasize the role of sustainability in productive actions related to smart building.

The Embedded Parallel Operational System (EPOS) will run inside of EPOSMote III. We will use EPOSMote to control the collors of the phisical tree.

The hardware of the sensors and controllers must be eposMOTE III running epos operating system;

As previously mentioned it will be used a tree with LED RGB to give feedback to the user of the building. A tree was chosen because it is the symbol of sustainability.

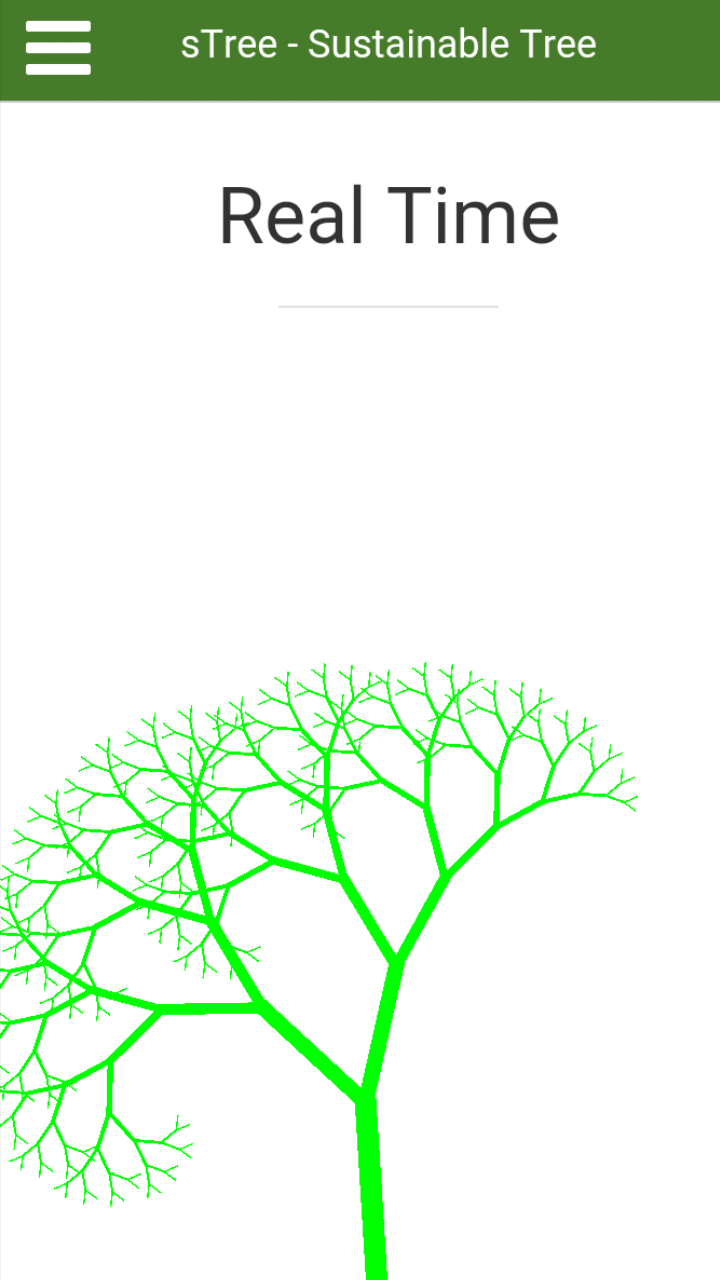

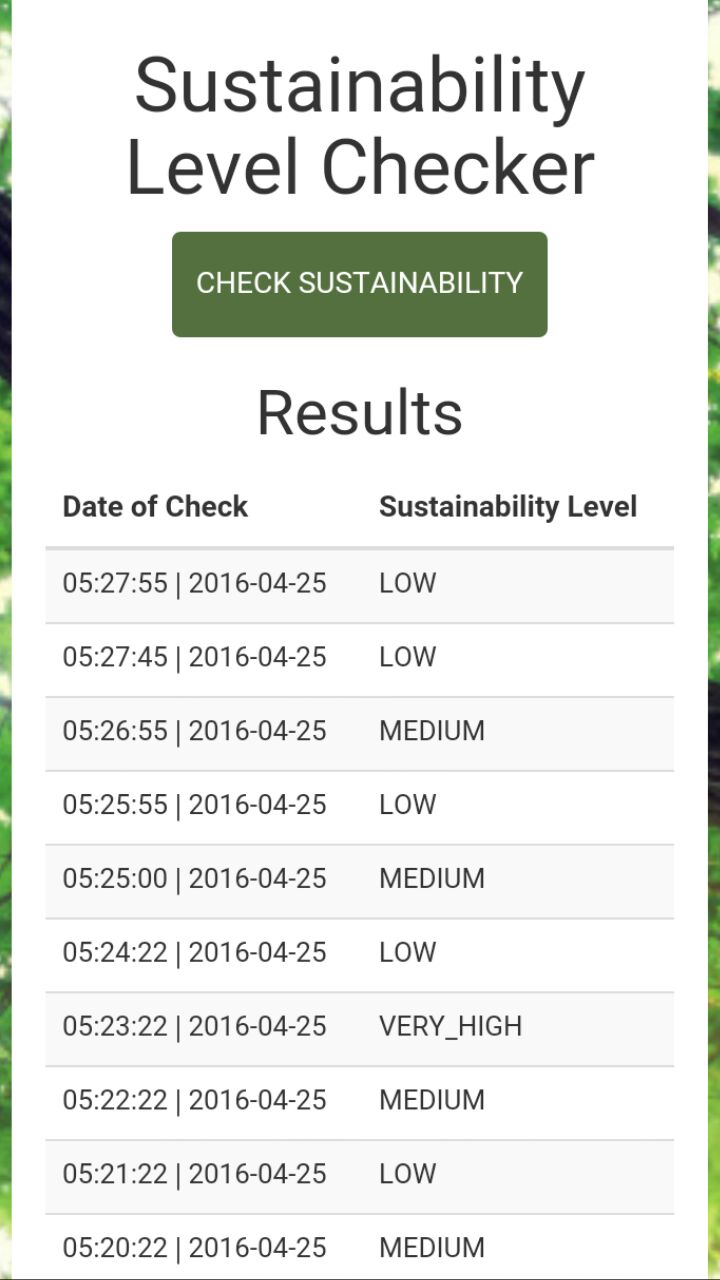

10.2. sTree App:
