EPOSMote III - Smart Plug Module

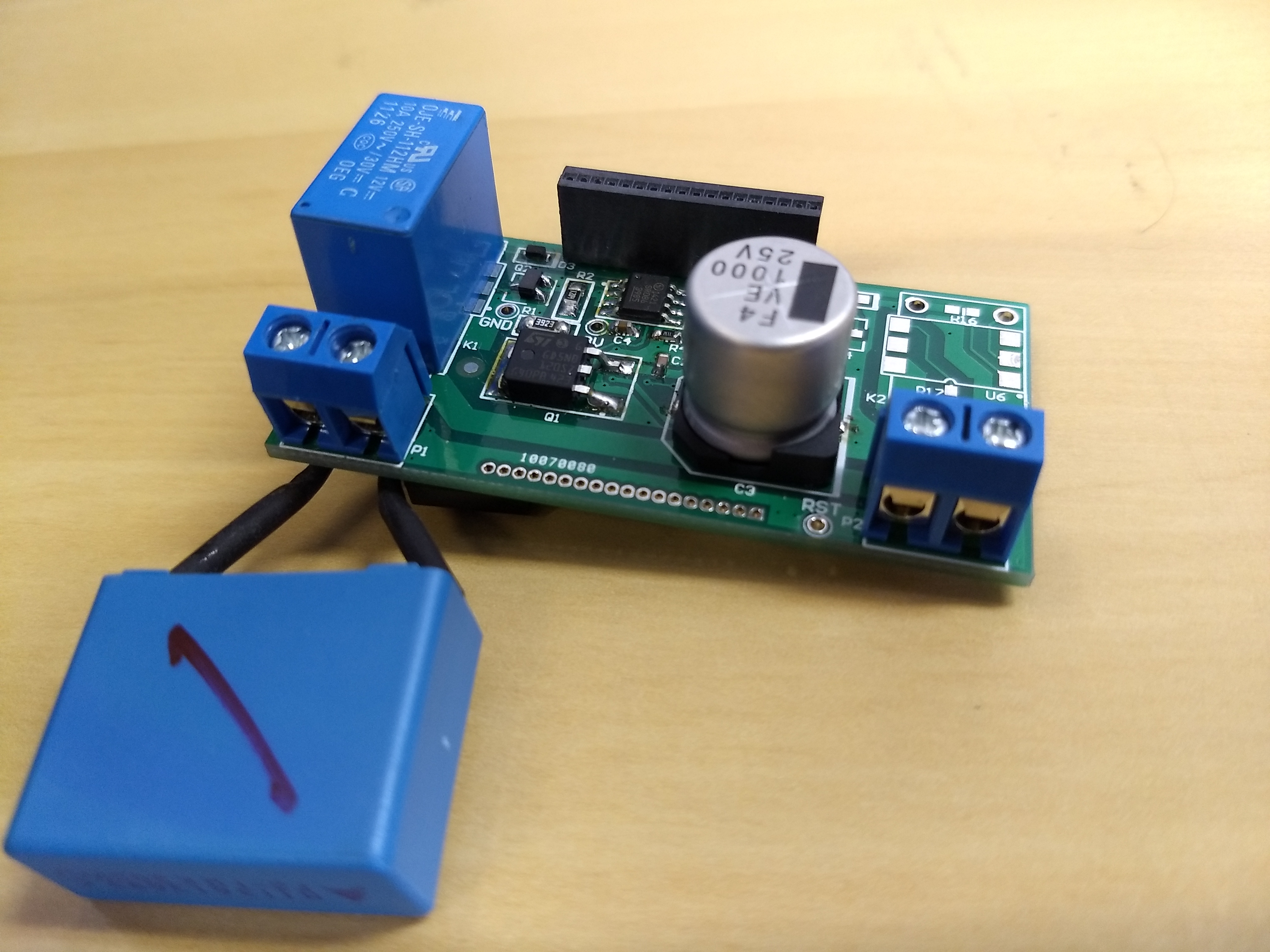

The EPOSMote III Smart Plug Module is a EPOSMote III daughter board used in the plugs of the LISHA. The board allows EPOSMote III to control and read the rated voltage of the plug and the current and power consumed by a machine that is connected to the plug.

IMG 20180327 154839662

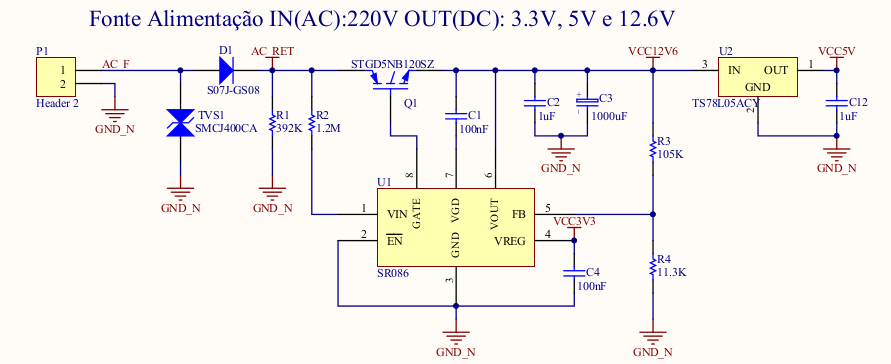

Power Supply (IN and OUT)

The EPOSMote III Smart Plug Module needs an input power supply of AC-220V and have an output power supply of DC-3,3V/5V/12,6V.

Screenshot From 2018 03 27 18 03 24

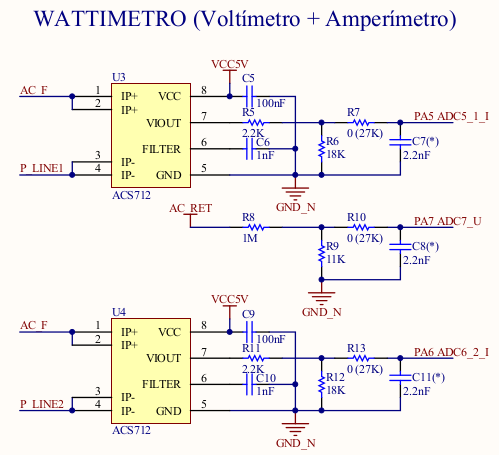

Wattmeter (voltmeter and ammeter)

The EPOSMote III Smart Plug Module have one voltmeter and one ammmeter, so, this way, we can calculate the power consumption, because P=V*I.

Screenshot From 2018 03 27 18 10 14

eMote III Connection

The eMote3 is connected to EPOSMote III Smart Plug Module through a pair of connectors in the board that fits exactly in the connectors of the eMote3. So, it’s just “plug and play”.

Board size

The EPOSMote III Smart Plug have the following dimensions (Height x Width): 60mm x 30mm.
