EPOSMote III - Hydrologic Module

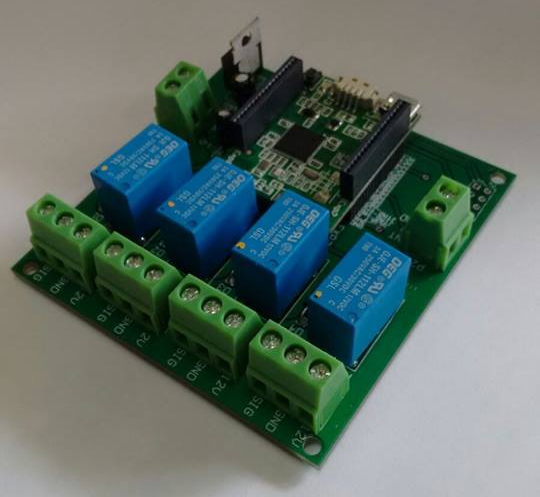

The EPOSMote III Hydrologic Module (EPOSMote III - Hydro)is a EPOSMote III daughter board used by hydrologic stations installed in UFSC creeks. The board allows EPOSMote III to control and read data from up to 4 12V sensors (level, turbidity, etc). Moreover, it has one GPIO used to interface with a pluviometers.


Hydro

Power Supply

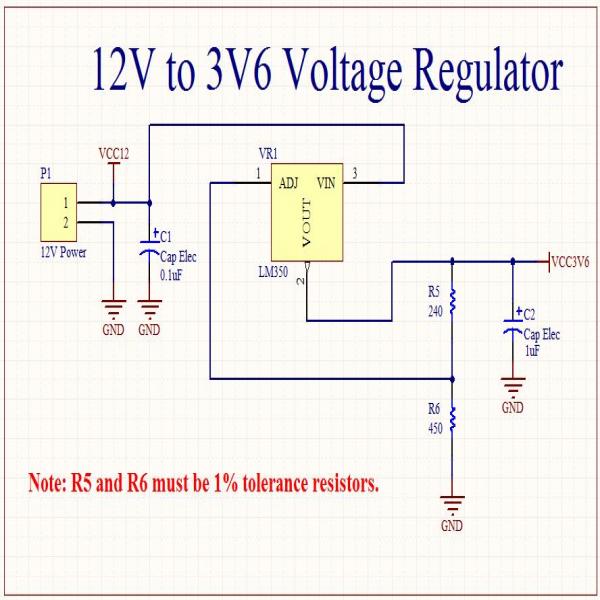

The EPOSMote III Hydro might be used in conjunction with emote3-gsm_gps board that operates on 3.6 V and has a considerable current consumption (700 mA with peaks of 1.6 A). To be used with emote3-gsm_gps at the same time, EPOSMote III Hydro is able to supply up to 3A through 3.6V, using the LM350 voltage regulator (VR1). More info here.

The main input voltage of the board are 12VDC.

Dl1668

Sensors

The sensors used in this board are controlled by EPOSMote through a relay circuit or directly over a common ground interruption pin. In the first case, when the relay is switched by eMote, the 12VDC turns the sensor on and the data read is sent back to eMote, now, through an ADC input.

The sensors will be connected to headers on the top of the board (P3 to P6) and these components will provide GND, 12VDC and receive the sensor data in the SIG(nal) terminals.

eMote III Connection

The eMote3 is connected to EPOSMote III Hydro through a pair of connectors in the board that fits exactly in the connectors of the eMote. So, it's just "plug and play". The schematic with the pinout is available here:
 Error
The type parameter is missing
.

Board size

The EPOSMote III Hydro have the following dimensions (Height x Width): 79mm x 76mm.

Externalizations


The P7 header are used to externalize some of the resources of the eMote 3, such as 3V6 VDC, GND, ADC's and GPIO's.
